Enameled copper clad aluminum wire

Diameter Range (mm): 0.19-4.0mm
Temperature Class (C): 130, 155, 180, 200, 220
Standard: IEC, NEMA, GB, JIS
Color: natural color

Download

Introduction

Main Products:
Class 130 Polyester Enameled Copper Clad Aluminum Wire
Class 155 Modified Polyester Enameled Copper Clad Aluminum Wire
Class 180 Polyester-imide Enameled Copper Clad Aluminum Wire
Class 200 Polyester-imide overcoat Polyamide-imide Enameled Copper Clad Aluminum Wire
Class 220 Polyester-imide overcoat Polyamide-imide Enameled Coper Clad Aluminum Wire

Product Features

Good electric conductivity;
Direct soldering performance;
High breakdown voltage;
Sustained and stable quality;
Tin soldering, good adhesion;
Professional Tech and sales Work Team;
High quality samples for testing;

Parameters

Name	Enameled copper clad aluminum wire
Diameter Range (mm)	0.19-4.0mm
Color	natural color, red, blue, green and so on
Thermal Class(℃)	130, 155, 180, 200, 220
Certificate	UL
Standard	IEC, NEMA, GB, JIS
Paking	30kg ~150kg ply-wood spool (250400 /250500/ 250600 / 250730)

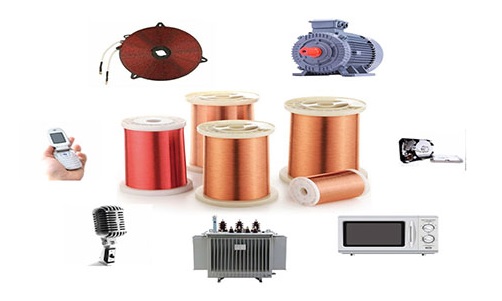

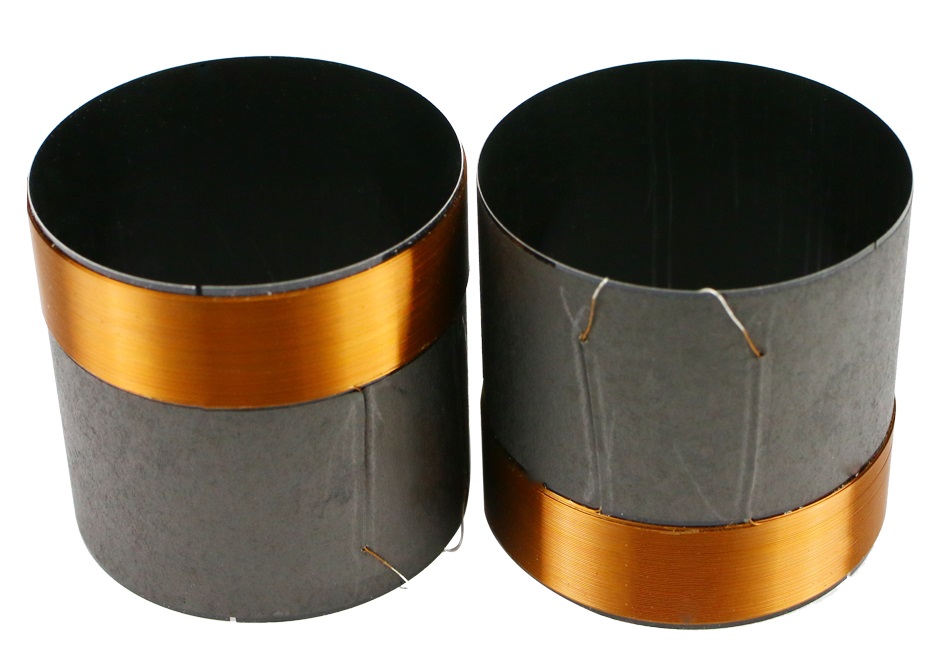

Application	Sealed motors working under high temperature/ Modern instruments/ Welding machines and other deflecting coils.

Certifications
