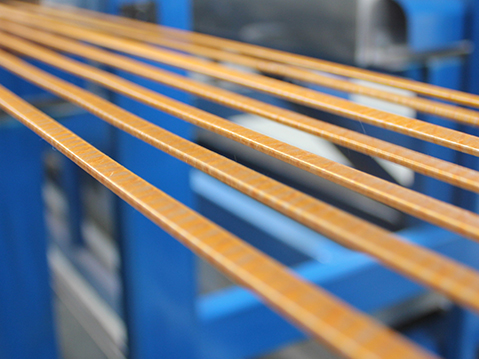

Insulation Fiber Glass Winding Wire

Diameter Range (mm): round:1.0-7.0mm flat:a:1-10mm b:3-35mm
Insulation Material: Fiber glass, fiber glass+varnish, fiber glass+film

Download

Introduction

Conductor is Aluminum and Copper, Which is extruded by electrician bare aluminum / bare copper through an extrusion process,the aluminum /copper conductor is evenly covered with 1~2layers of alkali-free glass fiber,with the required temperature index and compatibility of insulating paint dipping, baking processed, the glass fibers, glass fiber and conductor bonding as whole.

Product Features

1.Perfect test performance: High breakdown voltage, good solvent/heat resistance.
2.Excellent quality & competitive price and good after-sell service
3.Prompt Reply Within 12 Hours
4.Goods are examined before delivery by 30 QC staff
5.Sufficient supplies and prompt delivery
7.Satisfactory usability: Suitable for high-speed automated routing winding.

Parameters

Name	Insulation Fiber Glass Winding Wire
Conductor	Copper and Aluminum Wire
Dimension	Round	Diameter: 1.0~7.0mm
	Rectangular	Thickness(a): 1.0~10.0mm, Width(b): 3.0~35.0mm
Insulation Material	Fiber Glass
Insulation Thickness	Single, double or according to your requirement
Standard	IEC, NEMA, GB, JIS
Paking	30kg~150kg Poly-wood spool (250500/ 250600)
Application	Oil-immersed transformer windings;medium and large electrical motor and power substations etc.

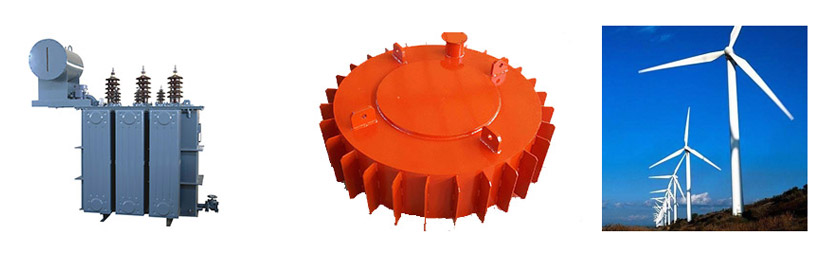

Product Application
