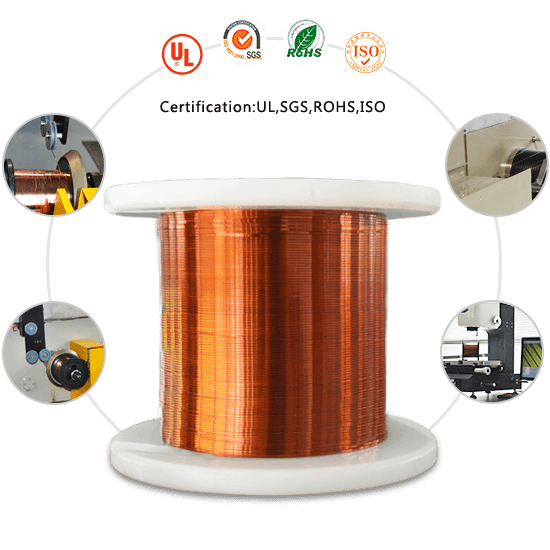

Zhengzhou LP ultra-fine enameled rectangular copper wire

ultra-fine enameled rectangular copper wire

Thickness:0.09-0.6mm,Width:0.2-3.5mm
Thermal Class：180,200,220

Product Introduction

Enamelled flat wire has the characteristics of thin insulation layer, high insulation strength, good flexibility and smooth surface. It is widely used in distribution transformers, generators, motor windings and various electrical equipment.

In order to improve the corona resistance and impulse voltage resistance of windings of wind turbines, variable frequency motors and traction motors, corona-resistant enameled flat wires can be selected.

Product Features

Product Usage:

Power Transformer loll and dryl, Traction Motor &Transformer (Generator, Electromotor) and windings for all kinds of electric appliance

Product classification:

As per conductor materials- Copper, Aluminum
As per conductor cross-section. Round, Rectangular

Product Parameters

Name	Ultra-fine Enameled Rectangular Copper Wire
Conductor	Copper
Dimension	Thickness(a): 0.1~0.6mm; Width(b): 0.2~6.0mm
Thermal Class (℃)	180 (Class H);200 (Class C);220 (Class C+);240(Class HC)
Feature	Solderable and Self-bonding
Standard	IEC,NEMA,GB,JIS,UL
Packing	PT-4 / PT-10 Plastic spool 5kg~150kg Poly-wooden spool (250400 /250500/ 250600 / 250730)
Appication	High temperature voltage devices, instruumentation and various types of electronic components windings etc.

Product Application
