Enameled Round Copper Wire
Raw Materials: Oxygen-free copper rod, insulation materials: Polyurethane etc.;
Thermal class: 180℃, 200℃, 220℃, 240℃
Dimension: 0.016 - 7mm; 1 awg - 50 awg
Application: used for transformers, inductors, motors, generators, power coils, magnet coils
Product Introduction

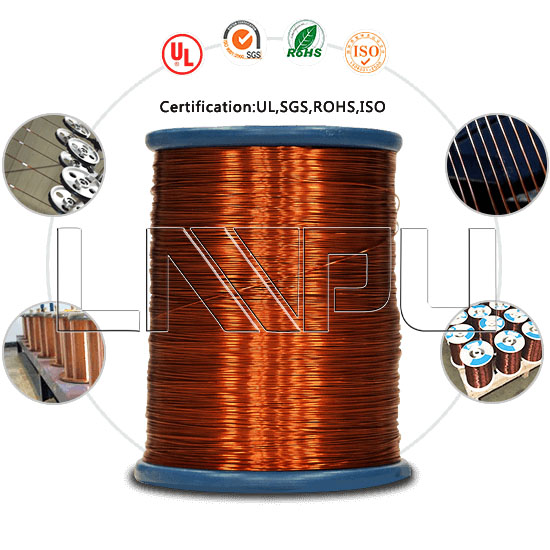

Enameled round copper wire
Our advantages:
1. Quality guarantee: rerun or refund
2. On-time delivery
3. 20 Years Keywords manufacturing experiences
4. 100,000.00 ㎡ factory
5. Perfect certification system include UL, ISO9001,ISO14001
6. Over 200 oversea customers
7. Export over 50 countries
Product Features
Product Features:
1.Perfect test performance: High breakdown voltage, good solvent/heat resistance.
2.Excellent quality & competitive price and good after-sell service
3.Prompt Reply Within 12 Hours
4.Goods are examined before delivery by 30 QC staff
5.Sufficient supplies and prompt delivery
6.Good wear-resistance film: Vertical enameling technology and ELANTAS insulation paint.

Product Parameters
Name Enameled Round Wire

Conductor Copper
Dimension Diameter: 0.016~7.0 mm
Thermal Class (℃) 120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)

Insulation thickness G1;G2;G3;G4

Certificate UL

Standard IEC,NEMA,GB,JIS
Packing PT-4~PT-200 or ply-wood spool

Appication Transformer; motor;generator; modern instrument; welding machine and so on


Enamelled round copper wire guage (awg/swg 4-28 copper wire is hot sale magnet wire)
AWG Bare Diameter(mm) AWG Bare Diameter(mm) SWG Bare Diameter(mm) SWG Bare Diameter(mm)
1 7.35 26 0.40 1 7.62 26 0.46
2 6.55 27 0.36 2 7.01 27 0.42
3 5.82 28 0.32 3 6.40 28 0.38
4 5.18 29 0.29 4 5.89 29 0.35
5 4.62 30 0.25 5 5.38 30 0.31
6 4.12 31 0.23 6 4.88 31 0.29
7 3.67 32 0.20 7 4.47 32 0.27
8 3.26 33 0.18 8 4.06 33 0.25
9 2.91 34 0.16 9 3.66 34 0.23
10 2.59 35 0.14 10 3.25 35 0.21
11 2.30 36 0.13 11 2.95 36 0.19
12 2.05 37 0.11 12 2.64 37 0.17
13 1.83 38 0.10 13 2.34 38 0.15
14 1.63 39 0.089 14 2.03 39 0.13
15 1.45 40 0.079 15 1.83 40 0.12
16 1.29 41 0.071 16 1.63 41 0.11
17 1.15 42 0.064 17 1.42 42 0.10
18 1.02 43 0.056 18 1.22 43 0.091
19 0.91 44 0.051 19 1.02 44 0.081
20 0.81 45 0.045 20 0.91 45 0.071
21 0.72 46 0.040 21 0.81 46 0.061
22 0.64 47 0.035 22 0.71 47 0.051
23 0.57 48 0.032 23 0.61 48 0.041
24 0.51 49 0.028 24 0.56 49 0.030
25 0.45 50 0.025 25 0.51 50 0.025
Product Application
Power Transformer loll and dryl, Traction Motor &Transformer (Generator, Electromotor) and windings for all kinds of electric appliance
