Continuously Transposed Cable Winding Without Paper
Thermal Class: class H 180℃ and Class E 105
Transposition number: 5 - 80
Single conductor size: thickness a: 0.90 – 3.15 mm, width B: 2.50 – 13.00 mm (tolerance ± 0.01 mm);
Conductor Materials: Copper & Aluminum
Product Description

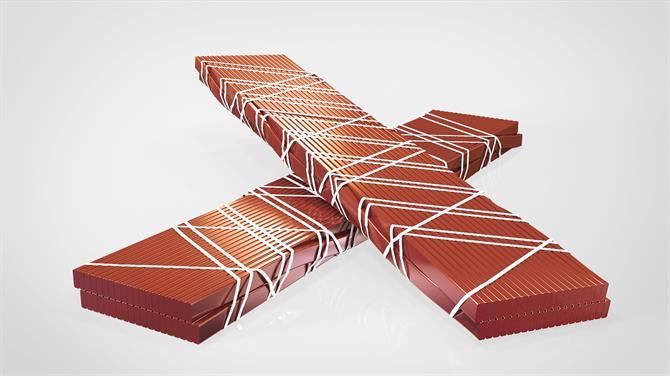

Continuously transposed conductors CTC Cable is a type of winding wires weaved by certain number of strips of enameled rectangular wires in two ranks according to special technical requirements and wrapped by special insulation material ( insulation paper, rope or tape) .
medium and ultra-high power transformers in electrical equipment
large-scale oil-immersed power transformers
reactors and large-capacity dry type transformers.
CTC Winding Advanatges
By using transposed conductor CTC Winding to make transformer, the space utilization ratio of winding is improved, the volume is reduced and the cost is reduced. More importantly, the additional loss of circulation and eddy current caused by leakage magnetic field are reduced. At the same time, it has the advantages of improving the mechanical strength of the winding and saving the winding time.

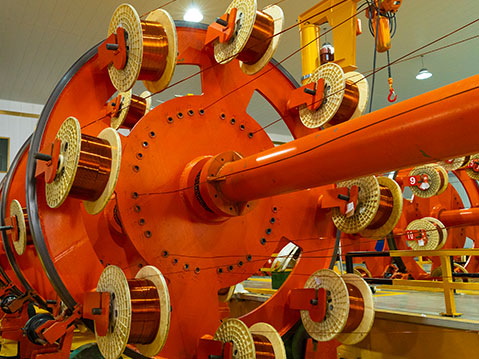

CTC winding

CTC Cable Specifications
Transposition number 5 – 80 (odd or even optional)
Maximum dimension height 120 mm, width 26 mm (tolerance ± 0.05 mm);
Single conductor size thickness a: 0.90 – 3.15 mm, width B: 2.50 – 13.00 mm (tolerance ± 0.01 mm);
width thickness of a single conductor is 2.0 < B / a < 9.0
coating thickness of enameled wire 0.08-0.12mm
Thermal Class class H 180℃ or Class E 105
Conductor Materials Copper & Aluminum
Continuously Transposed Cable CTC Winding
CTC Cable Packing
Spool NO. 1250# 1600# 1600# 1800# 1800#
Outside Dia.(mm) 1250 1600 1600 1800 1800
Inner Dia.(mm) 800 1100 1100 1100 1300
Outer wide(mm) 650 670 870 810 1280
Inner wide(mm) 500 500 700 630 1100
Spool hole Dia.(mm) 105 105 105 105 105
Wire weight per spool 2500kg 3500kg 4000kg 4500kg 5000kg

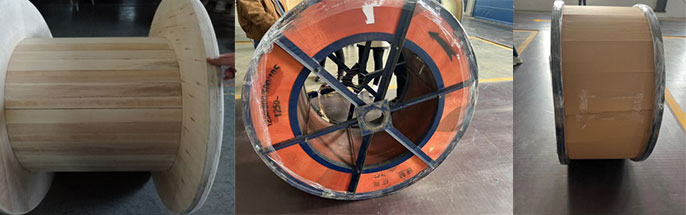

Continuously Transposed Cable packing
