Enameled Square Wire

Conductor:Copper or Aluminum
Copper Thickness(Width)/a(b):0.45-6.0 mm
Aluminum Thickness(Width)/a(b): 1.2-9.1 mm

Download

Introduction

Main Product:
Class 180 Polyesterimide/Polyamide Enameled Square Aluminum/Copper Wire

Class 200 Modified Polyeste Enameled Square Aluminum/Copper Wire

Class 220 Polyesterimide Enameled Square Aluminum/Copper Wire

Product Features

1) Suitable for winding in high speed machines
2) Very good resistance to transformer oils
3) Very good resistance to typical solvent
4) Freon resistant
5) Excellent resistance to mechanical stress

Parameters

Name	Enameled Square Wire
Conductor	Copper and Aluminum
Dimension	Copper	Thickness(Width)/a(b): 0.45-6.0mm
	Aluminum	Thickness(Width)/a(b): 1.2-9.1mm
Thermal Class(℃)	180(Class H); 200(Class C); 220(Class C+); 240(Class HC)
Insulation Thickness	Single, Heavy
Certificate	UL
Standard	IEC, NEMA, GB, JIS
Paking	30kg ~150kg ply-wood spool (250400 /250500/ 250600 / 250730)
Application	Transformer, generator, refrigeration system, Class C generators, UPS power supply, electronic transformer etc.

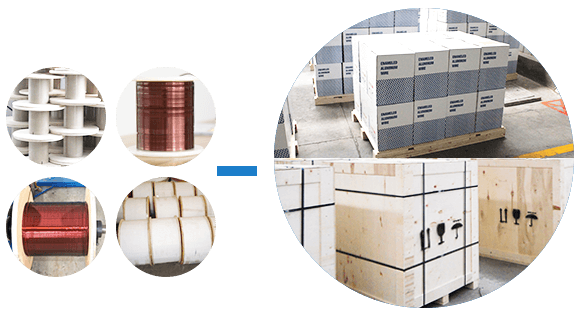

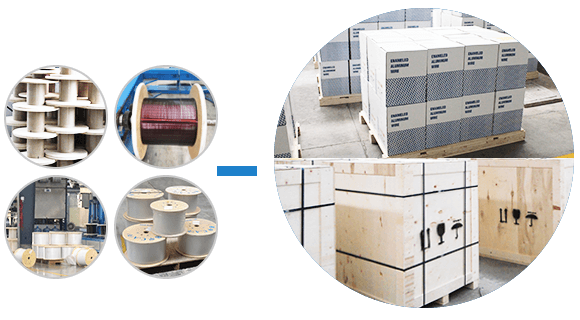

Packaging

30kg/50kg wooden spool, plastic spool. We can also pack according to customer requirements.
