Class 180 Polyesterimide glass-fibre yarn flat wrapped copper wire
Date: Sep 29, 2022
Excellent resistance to mechanical stress

Field of application:
- Magnet coils
- Generators
- Electric motors
- Dry-type transformers

IEC 60317-31 or customer specification

Class: 180
Temperature index ≥ 180°C acc. to experience
Heat shock: ≥ 200°C

Shelf life: 5 years, under normal ambient conditions

1- 3 layers of glass-fibre yarn
Impregnation: Polyesterimide

Conductor material
EN 1977 - ETP1 CW003 A
EN 1977 - ETP CW004A
ASTM B49 - ETP C11000/C11040

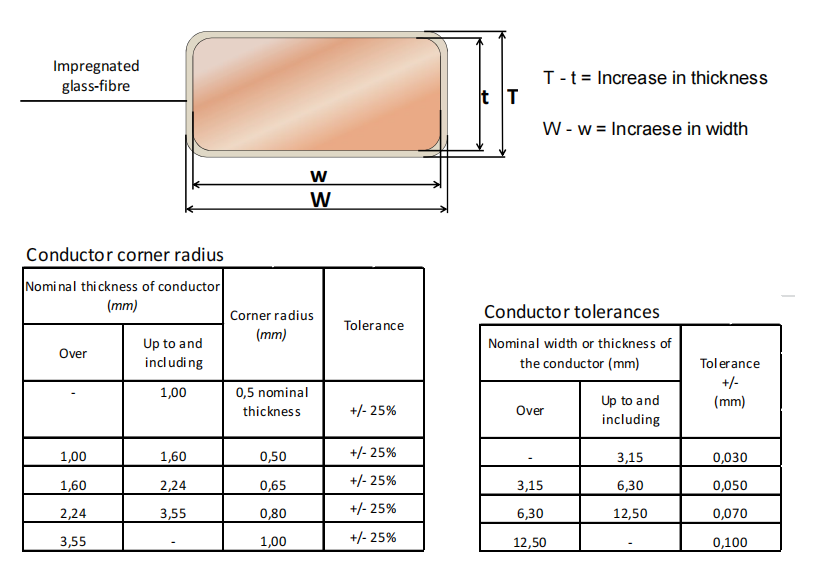

flat wrapped copper wire
flat wrapped copper wire
flat wrapped copper wire
