Class 180 glassfibre yarn Rectangular enamelled conductor of copper
Date: Sep 29, 2022
Properties:
Excellent resistance to mechanical stress
Heat resistant

Field of application:
- Dry-type transformers
- Electric motors
- Generators

Specifications:
IEC 60317-31 or customer specification

Class: 180
Temperature index ≥ 180°C acc. to experience
Heat shock: ≥ 200°C
Shelf life: 5 years, under normal ambient conditions

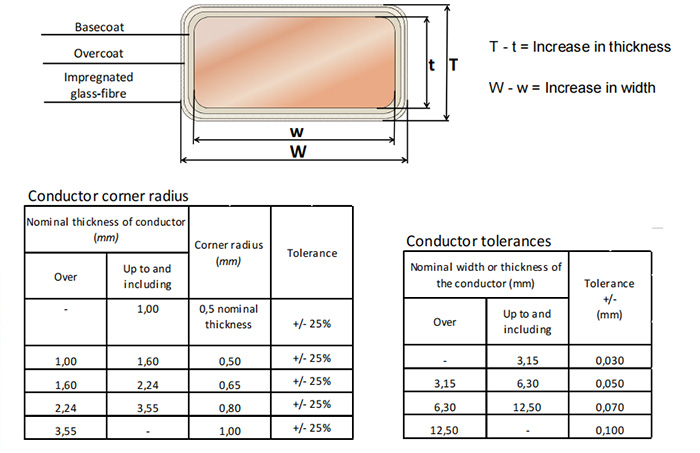

Insulation:
Basecoat: THEIC-modified polyester or polyesterimide
Overcoat: Polyamide-imide
1-2 layers of glassfibre yarn
Impregnation: Polyesterimide

Conductor material
EN 1977 - ETP1 CW003 A
EN 1977 - ETP CW004A
ASTM B49 - ETP C11000/C11040
Rectangular enamelled conductor of copper
Rectangular enamelled conductor of copper
Rectangular enamelled conductor of copper
