Kind of Wire: aluminum wire
Kind of Coat:EIW
Heat resistance Temperatur: 200℃
Dimension: Dia. of conductor: 0.65±0.005
Wire Dia: (STD)0.684, (MAX) 0.694

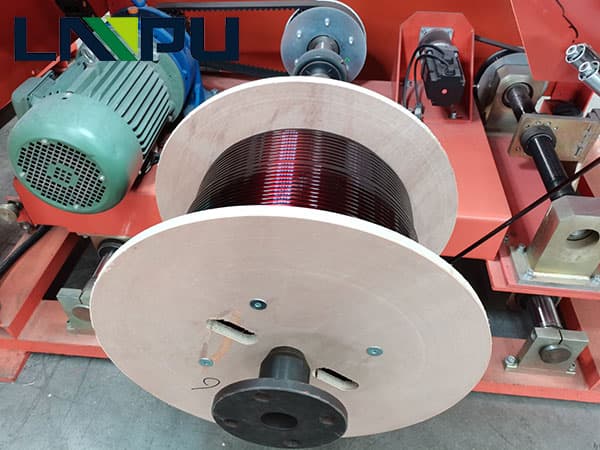

LP Industry produces enamelled Flat aluminum wire
which is mainly used as an electrical conductor wherever coils are in motion. It's available size in diameter from Thickness: 0.8--8mm, width: 2-22.5mm.
Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB.
Spool materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg - 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
