Continuously transposed cable (CTC) wire is a specialized type of cable that utilizes a combination of conductive and insulating materials to achieve exceptional electrical and mechanical properties.
| Cliente Especificagao |
TRAEL |
Ordem 1 Projeto Condutor |
TF-23056 |
|
| |
Cobre (x) |
Aluminio () |
| Number of conductors |
27 |
|
|
|
| Conductor width |
5,3 |
mm |

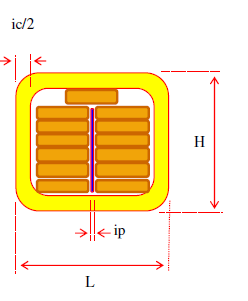

ic/2 |
|
| Conductor Thickness |
1,8 |
mm |
|
|
| Corner radius of curvature |
0,65 |
mm |
> < |
|
| Yield limit (0.2%) |
150 |
N/mm? |
I |
|
| Type of insulation |
Cordex |
|
|
H |
| Insulation addition (ic) |
0,45 |
mm |
|
|
| Number of roles |
NA |
|
|
|
| Type of base enamel |
PVF |
|
|
|
| Type of cementitious enamel |
Epoxi |
|
|
> < ip |
| Adding base enamel |
0.12 |
mm |
|
|
| Addition of cementitious enamel |
0,05 |
mm |
-- - |
L |
| Separator paper type (ip) |
H/P |
|
|
|
| Separator paper thickness |
0.105 |
mm |
|
|
| Minimum winding diameter |
554 |
mm |
|
|
| External dimensions Tolerance |
L= |
11,60(*) |
mm H= mm H土 |
29,00(**) |
mm mm |
| L土 |
+/-0.15 |
+/-0.50 |
| Number of bids |
Reel size (m) |
Reel Type |
Number of spools |
Number of separators |
| |
|
|
|
|
| 2 |
559,5-0/+1 |
As per manufacturer |
2 |
0 |
| Total (*) Dimensao Axial (L)= 1,01x2x(5,3+0,17 )+0,105+0,45= 11,6 mm (*) Dimensao Radial(H)= [1,04x(27+1)/2x( 1,8+0,17 )+0,0+0.45= 29.0mm |
| Total insulated |
| 2473 weight(kg) weight (kg) |
| NA Elaborado: Rogerio Uto / Controlado/Aprovado: Fredy Aoyagui |
| Observation CTC -23056 01 -BT- c6DIGO TRAEL: 363134 |
| Revisao 0 - Emissao Inicial- 17/12/2022 |
